single probe1A

single probe1A

Product introduction

Product Name: single probe
Product model: 02802jt-0004

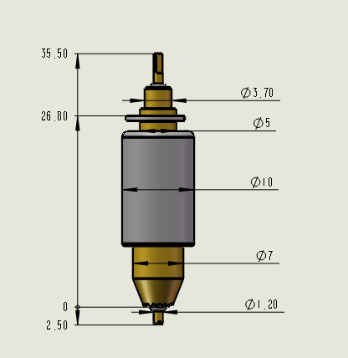

Overall dimension: φ 7 *38 MM
Main material: brass (overall gold plating 1 step)
Applicable: low current battery test
Operating current: 1A
Probe internal resistance: ≤ 10m Ω
Ambient temperature; ≤100C°
Note: overtemperature and overtravel operation will shorten the service life of the probe

Elastic parameters: when the current needle is compressed by about 5mm, the elastic force is about 0.65kg ± 15%.
